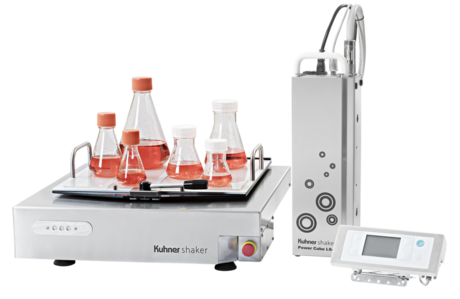

The Lab-Shaker LS-Z, just like its predecessor
LS-X, is a sturdy benchtop shaker designed for continuous and maintenance-free
operation. The LS-Z is part of a new 3-in-1 modular system to provide maximum
flexibility to our customers. The shaker is the perfect starter model, e.g.,
for universities or start-ups. It can be used for cultivation of microbial,
plant and animal cell cultures. Furthermore, the LS-Z is well suited for the
integration into liquid handling systems (e.g., Tecan, Hamilton,…) and other automated
laboratory processes.
5 year warranty
Shaking diameter
Quiet operation
Automation
Shaking diameter
Dr. Shakers Helpful Hint N°4 explains what the shaking diameter
is and how you can determine the shaking diameter of your lab shaker.
Find information on the importance of the shaking diameter for biological cultivations in our Shaking Technology Forum: Why is the shaking diameter important?
The LS-Z comes with three options: benchtop only/stand-alone, combinable with incubators or liquid handling systems from other manufacturers, or combined with the new Kuhner Kelvin+ incubator for temperature control. The LS-Z shaker unit has a very small footprint, tolerates an ambient relative humidity of up to 90%, and features a detachable control unit and power cube. Therefore, the LS-Z is extremely flexible regarding its installation site: it can be placed in any lab incubator or temperature-controlled room.
LS-Z shaker unit tolerates an ambient relative humidity of
up to 90%
The in-house designed magnetic drive system of the LS-Z shaker guarantees accurate control and low energy consumption/heat dissipation even at high speeds. The maintenance-free direct drive is long lasting, robust, and economical.
The LS-Z shaker accepts loads up to 25 kg and the shaking diameter can be adjusted at any time. There are three standard shaking diameters (12.5, 25 and 50 mm) with others available on request.
Due to hygienic design, the drive is also protected from any spills.
The LS-Z is well suited for the integration into liquid handling systems and other automated laboratory processes. The lab shaker can be equipped with the flexible Kuhner interfaces (such as the Net60 interface) to connect the system very easily to standard process control systems (e.g., Siemens, Emerson, …). With these interfaces, also the control of the shaker setpoints can be realized (automation of the system). Additionally, the LS-Z has a precise stop position, which is for instance crucial for the integration into a liquid handling system.
As with all Kuhner products, the LS-Z is a cost-effective investment in quality backed with a five-year warranty.
We subject all our shaking machines to an elaborate final test before delivery and send the test protocols to our customers.

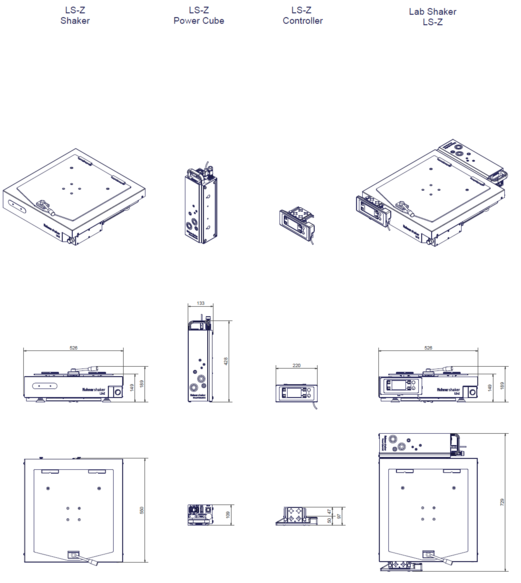

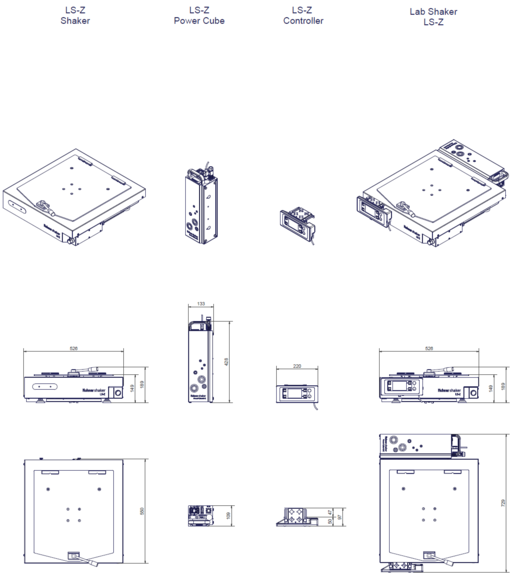

Temperature minimum | - |
Temperature maximum | - |
Principle of sensor | - |
Power of heating | - |
Air circulation | - |
Power consumption typical | approx. 25W |
Gas volume | - |
Weight shaker | 46 kg |
Weight Power Cube | 6.5 kg |
Weight Controller | 0.6 kg |
Illumination | - |
Ambient temp. | -20 up to 80°C |
Ambient relative humidity | up to 90 % (shaking unit) |
Operating menu in | DE, FR, IT, EN, ES |
Interface standard | CAN-Bus |
Tray, size | E (420 x 420mm) EX (500 x 420mm) F (800 x 420mm) |
Loading maximum | up to 25 kg |
Setting, digital | 1 rpm |
Accuracy, absolute | ≤ 800 rpm = ± 0.5 rpm |
Timer | 1 s – 999 h |
Acceleration | controlled |
Active break | adjustable |
Stop on position | adjustable |
Mains Connection | 220 - 240 V / 50 - 60 Hz |
Shaking motion | orbital, Ø 12.5 mm* 20...500 rpm |
Material | Stainless steel cover |
*can be changed/other diameters on request Technical data subject to change | |
Technical data subject to change
The dual table is an easy and economical way of doubling the shaking capacity. The dual shaking table consists of two levels. Each level will accept an E (420 x 420 mm), EX (500 x 420 mm) or F (800 x 420 mm) size tray.
The dual table is available with a fixed distance between the two levels of either 120, 160, 180, or 200 mm. At the maximal distance of 200 mm the lower level accepts 125 mL, 250 mL, and 500 mL Erlenmeyer shake flasks.
However, with the dual table the shaking speed is limited to 200 rpm at a shaking diameter of 50 mm (all other maximum shaking frequencies, dependent on the shaking diameter, can be withdrawn from the LS-Z manual).
Do you perform screenings with a large number of 50 ml bioreactors (TPP, Falcon etc.) or microtiter plates? Would you like to shake different cultivation vessels on the same shaker and be able to change the composition quickly and easily? Then the Kuhner EPFL-table is the optimal solution for you. The shaker table has 5 individual clamps, so that 5 different holders or EPFL universal trays can be clamped. By opening a clamp, a single holder or universal tray can be easily removed from the incubator shaker and processed under a clean bench while the remaining holders/trays keep on shaking.
The EPFL universal tray can be equipped with clamps for Erlenmeyer flasks, Schott laboratory bottles, test tube holders, microtiter plates or customer-specific holders. Rearrangement of these clamps and holders is quick and easy. The universal tray can also be equipped with sticky strips. Sticky strips are used to fix shake flasks or other equipment on shaking trays. They offer easy handling and flexible positioning of different sizes and shapes of shake flasks and other vessels.
Special holders for microtiter plates, 50 mL centrifuge tubes (Falcons) and 600 mL reaction vessels are also available for the EPFL-table.
Instead of 5 individual holders, a large Kuhner F-tray (800 x 420mm) can also be clamped onto the shaker table.
For the smaller (incubator) shakers from Kuhner, correspondingly adapted EPFL-tables with 3 or 4 clamps are available (LT-X: 3 clamps, LS-Z: 3 or 4 clamps).
EPFL-table
EPFL-table with different holders
F-size tray clamped on the EPFL-table
Clamp handle
Order number | Description |
|---|---|
100125 | Holder for 24 x 50 ml Falcon/TPP tubes mounted on a base plate |
Order number | Description |
|---|---|
104173 | Cover clamp for 4 deepwell MTPs (Duetz) |
Order number | Description |
|---|---|
104104 | Universal clamp for 12-16 lowwell MTPs or 4 deepwell MTPs (Duetz) |
Order number | Description |
|---|---|
107322 | EPFL-Tray Universal kpl. can be fitted with clamps |
Order number | Description |
|---|---|
105186 | Holder 5x600mL TPP tubes, straight tubes |
108226 | Tube set for holder 5 x TPP 450ml |
Order number | Description |
|---|---|
100633 | Holder for 3 x 600ml reactor |
AerationSystem and FlowCon provide the ideal system for carrying out cell/stem cell cultivations in a simple, fast, and inexpensive manner.
Lab shakers in
temperature-controlled rooms and incubator shakers without humidity and CO2-control
can be equipped with the AerationSystem and FlowCon to easily implement humidification and a controlled
gas composition for carrying out cell cultivations (e.g., CHO, HEK cells…) in
shake flasks.
The FlowCon is a stand-alone gas mixing device and provides a precise gas composition and flow rate. Simultaneously, the AerationSystem (consisting of GasDivider and special shake flask caps) humidifies and distributes the gas flow evenly to the connected shake flasks. Evaporation losses from the shake flasks are significantly reduced, which is particularly advantageous for very long cultivation times (such as cell culture processes) and contributes to successful cultivations. Another advantage is that opening the incubator door does not affect the gas composition in the shake flasks when they are connected to the aeration system.
By controlling the composition of the inlet air with the FlowCon, it is not only possible to supplement CO2 but also to increase or reduce the concentration of oxygen (O2) or implement anoxic conditions using nitrogen (N2). This control of gas compositions allows for a variety of different applications, including stem cell processes for gene therapy or cultivated meat that require a physiological oxygen concentration at 5% O2 or anaerobic cultivations in a nitrogen atmosphere.
The patented Kuhner GasDivider humidifies the mixed, dry gas flow provided by the FlowCon and distributes it precisely and evenly across the attached shake flasks, independent of shake flask type, tube length and any filters in-between. As the GasDivider is placed on the shaking tray of the (incubator) shaker, the gas flow is also perfectly adapted to the temperature of the incubator shaker or temperature-controlled room.
IQ-OQ (Installation Qualification and Operation Qualification) is an equipment qualification according to GMP procedure. Kuhner offers this service which can also be carried out at the customer’s premises.
E & F size microtiter trays are suitable for all types of plates (deep well, low well, 24, 48 and 96 well).
The universal tray can be fitted with clamps for Erlenmeyer flasks, test tube holders, microtiter plates, or custom made holders to suit your requirements. Rearranging these clamps and holders is quick and simple.
Order number | Description |
|---|---|
102201 | Universal tray EU (420 x 420 mm) |
102207 | Universal tray EXU (500 x 420 mm) |
102212 | Universal tray FU (800 x 420 mm) |
101422 | Clamp U-2500 for Ultra Yield flask from Thomson |
Universal tray FU with 8x Ultra Yield flasks (2500 mL) from Thomson
A special F-size universal tray (800x420mm) is now available to shake large Erlenmeyer flasks. It is ideal for cell culture.
This tray allows parallel shaking of 7 x 3L Corning Fernbach culture flasks or 7 x 5L Thomson Optimum Growth flasks at a maximum orbital diameter of 50mm. The FUM-V has no handles and a V support underneath the tray raises it above the clamping mechanism creating more space for flasks.
Clamps must be ordered separately. (Order number: 101425)
Order number | Description |
|---|---|
100546 |
Special universal tray, FUM-V with V support |
101425 |
U-3000F clamp for Fernbach flasks: |
The clamps are riveted onto these trays and cannot be removed. They offer maximum stability and will often hold a larger number of flasks than universal trays. These trays (E, EX and F) are available in a variety of flask clamp sizes from 25 to 6000ml.
Order number | Description | Number of clamps |
|---|---|---|
101525 | E-25 ml | 81 |
101526 | E-50 ml | 50 |
101527 | E-100 ml | 39 |
101528 | E-125 ml | 30 |
101529 | E-150 ml | 30 |
101530 | E-200 ml | 20 |
101531 | E-250 ml | 18 |
101532 | E-300 ml | 15 |
101533 | E-500 ml | 12 |
101534 | E-1000 ml | 9 |
101535 | E-1500 ml | 5 |
101536 | E-2000 ml | 5 |
101537 | E-3000 ml | 4 |
101538 | E-4000 ml | 2 |
101539 | E-5000 ml | 2 |
101540 | E-6000 ml | 1 |
Order number | Description | Number of clamps |
|---|---|---|
101541 | EX-25 ml | 90 |
101542 | EX-50 ml | 60 |
101543 | EX-100 ml | 42 |
101544 | EX-125 ml | 36 |
101545 | EX-150 ml | 32 |
101546 | EX-200 ml | 25 |
101547 | EX-250 ml | 21 |
101548 | EX-300 ml | 18 |
101549 | EX-500 ml | 14 |
101550 | EX-1000 ml | 9 |
101551 | EX-1500 ml | 8 |
101552 | EX-2000 ml | 5 |
101553 | EX-3000 ml | 4 |
101554 | EX-4000 ml | 3 |
101555 | EX-5000 ml | 3 |
101556 | EX-6000 ml | 2 |
Order number | Description | Number of clamps |
|---|---|---|
101557 | F-25 ml | 153 |
101558 | F-50 ml | 100 |
101559 | F-100 ml | 74 |
101560 | F-125 ml | 60 |
101561 | F-150 ml | 60 |
101562 | F-200 ml | 40 |
101563 | F-250 ml | 40 |
101564 | F-300 ml | 30 |
101565 | F-500 ml | 26 |
101566 | F-1000 ml | 16 |
101567 | F-1500 ml | 12 |
101568 | F-2000 ml | 9 |
106226 | F-2500U | 8 |
101569 | F-3000 ml | 8 |
101570 | F-4000 ml | 5 |
101571 | F-5000 ml | 4 |
Kuhner has designed trays specifically for microtiter plates. Handles at the front of the tray open and close the special clamping mechanism allowing plates to be loaded and unloaded. Trays of different heights (22, 47 and 77mm) allow the stacking of up to four microtiter plates. The trays are suitable for all types of plates (deep well, low well, 24, 48 and 96 well).
Order number | Description | Number of mircotiter plates |
|---|---|---|
104947 | E-MT.22 | 12 - 24 |
104950 | E-MT.47 | 12 - 48 |
104948 | E-MT.77 | 12 - 72 |
Order number | Description | Number of microtiter plates |
|---|---|---|
104900 | F-MT.22 | 24 - 48 |
104894 | F-MT.47 | 24 - 96 |
104898 | F-MT.77 | 24 - 144 |
Kuhner has designed a new tray for microtiter plates. This tray is fitted with springs which allows each well plate to be loaded and unloaded individually. The tray is available in three sizes: E (420x420mm), EX (500x420mm) and F (800x420mm).
This new tray is particularly suitable for the special holder with filter lid for deep well microtiter plates.
Order number | Description | Number of microtiter plates |
|---|---|---|
104806 | E-tray (420 x 420 mm) for deepwell or microtiter plates | 1-12 |
104794 | EX-tray (500 x 420 mm) for deepwell or microtiter plates | 1-15 |
104825 | F-tray (800x420mm) for deepwell or microtiter plates | 1-24 |
F-tray (800 x 420 mm)
Kuhner has designed a new F-size tray (800 x 420mm) which is ideal for cell culture. The F-V5000/7 tray allows parallel shaking of 7 x 3L Corning Fernbach culture flasks, 7 x 5L Corning Erlenmeyer flasks or 7 x 5L Thomson Optimum Growth flasks. Flasks are held in position by pins and are easily placed on the tray and removed just as quickly.
This tray has been designed for easy cleaning and efficient handling of samples.
Order number | Description |
|---|---|
104956 |
F-V5000/7 |
The whole tray is covered with a rubber mat and is particularly suitable for shaking containers at low speed (e.g. blood bags).
Order number | Description |
|---|---|
105312 | Rubber mat EG (420 x 420 mm) |
105313 | Rubber mat EXG (500 x 420 mm) |
105311 | Rubber mat FG (800 x 420 mm) |
A tray fitted with sticky strips is especially useful for flasks shaken at low speeds (up to 200 rpm). The flask is placed directly on the sticky strip without the need for any other support. Flasks of all sizes can be used. Sticky strips are available individually or in sets and can also be supplied already fitted to a tray. The E-size tray accepts four strips, while the EX-size tray requires five strips and the F-size tray eight strips.
Order number | Description |
|---|---|
105169 | E-tray with 4 sticky strips (clear) |
105199 | EX-tray with 5 sticky strips (clear) |
105200 | F-tray with 8 sticky strips (clear) |
105194 | 1 sticky strip: 385 x 85 x 3 mm (clear) |
The PC-plate increases the adhesion of the sticky strips. This is particularly helpful if using flasks >500ml.
Order number | Description |
|---|---|
105224 | EX-tray with 5 sticky strips (clear) |
100531 | F-tray with 8 sticky strips (clear) |
105220 | F-tray with 2 big sticky strips (clear) |
105194 | 1 sticky strip: 385 x 85 x 3 mm (clear) |
105196 | 1 big sticky strip: 395 x 385 x 3 mm (clear) |
The dual tray offers two shaking levels and doubles the capacity. It is available in EXU, EX, FU and F size and the upper tray can be removed.
Please note the shaking speed is limited.
Order number | Description |
|---|---|
100548 | two EXU trays with 200mm distance (with holes) |
102226 | two EX trays with 200mm distance (no holes for sticky strips / rubber mats) |
102217 | two FU trays with 180mm distance (with holes) |
102218 | two F trays with 180mm distance (no holes for sticky strips /rubber mats) |
102219 | two FU tray with 200mm distance (with holes) |
102220 | two F trays with 200mm distance |
These trays offer an alternative to both clamps and sticky mats and are ideal for tall containers. The tray is covered with a rubber mat and has an upright at each corner. E and EX size trays are fitted with four cross supports while the F tray is equipped with six. These support bars securely clamp containers.
Order number | Description | Number of longitudinal girders |
|---|---|---|
106408 | Tray EA with rubber mat and 4 cross supports | 2 |
106407 | Tray EXA with rubber mat and 4 cross supports | 2 |
106134 | Tray FA with rubber mat and 6 cross supports | 2 |
Kuhner has also designed a special tray for shaking separating vessels. This very flexible tray can take vessels of various sizes. It is also possible to add a second layer and double the capacity. Movable retaining rods allow vessels to be installed easily.
Order number | Description | Number of separating vessels |
|---|---|---|
SM420250 | ES-250 | 5 |
SM4202502 | ES-250/2 | 10 (2 layers) |
SM420500 | ES-500 | 4 |
SM4205002 | ES-500/2 | 8 (2 layers) |
SM421000 | ES-1000 | 3 |
SM4210002 | ES-1000/2 | 6 (2 layers) |
Order number | Description | Number of separating vessels |
|---|---|---|
SM430250 | FS-250 | 10 |
SM4302502 | FS-250/2 | 20 (2 layers) |
SM430500 | FS-500 | 8 |
SM4305002 | FS-500/2 | 16 (2 layers) |
SM431000 | FS-1000 | 6 |
SM4310002 | FS-1000/2 | 12 (2 layers) |
This tray was developed to shake (orbital or linear) 2D-Bags. Rubber bands secure for example smaller blood and cryo bags. The tray is compatible with ISF1-Z, ISF4-X, Rack System (SBM/SS-X) and LS-Z shakers. It accepts various brands and sizes of pillow shaped single-use bags:
Order number | Description |
|---|---|
105017 | F-tray for 2D-bag with working volume 1/5/10L |
This tray was developed for shaking (orbital or linear) different types of 2D-bag. The tray consists of an aluminium base with a flexible mounting system on top.The mounting system can be manually adjusted to facilitate the controlled fixing of different sized cultivation bags. The mounting bars on both longitudinal sides can be moved up and down to hold the cultivation bag in place, while rubber bands will secure the smaller blood and cryo bags. The F-2D-Bag-tray is compatible with ISF1-Z, ISF4-X, Rack System (SBM/SS-X) and LS-Z shakers. The tray accepts various brands and sizes of pillow shaped single-use bags:
Visit our poster gallery and find more information on the poster "Characterisation of a RSB 20 L.pdf"
Order number | Description |
|---|---|
105052 | F-Tray for 2D-bag
with working volume 1/5/10L |
The pin-clamps are ideal for cleanrooms and areas where sticky mats or other standard clamps are not suitable. The clamps have been designed for easy cleaning and efficient handling of samples. The stainless-steel pin-clamps are compatible with all Kuhner universal trays. The shaking speed is limited to a maximum of 180 rpm at 50 mm shaking diameter.
| Order number | Description |
|---|---|
| 107167 | Pin-clamp 1000 mL Schott bottle/ 500 mL Erlenmeyer flask |
| 107168 | Pin-clamp 500 mL Schott bottle |
| 107324 | Pin-clamp 250 mL Erlenmeyer flask |
| 107326 | Pin-clamp 125 mL Erlenmeyer flask |
| 108729 | Pin-clamp 1000 mL Erlenmeyer flask |
| 108730 | Pin-clamp 1000 mL Duran / Kuhner TOM |
| 108731 | Pin-clamp 1600 mL Thomson Optimum Growth |
| 108732 | Pin-clamp 2800 mL Thomson Optimum Growth |
| 108733 | Pin-clamp 2000 mL Erlenmeyer flask |
| 108734 | Pin-clamp 3000 mL/ 5000 mL Fernbach flask / Corning & Thomson Optimum Growth |
The user-friendly Kuhner Insight software was developed for supervision, monitoring, and recording of data. The software is easy to operate More.
Kuhner shakers are equipped with a CAN-bus. CAN-USB, CAN-Ethernet, EMI-60 and NET-60 are all well established interfaces. More.
Yes
Yes. The LS-Z tolerates up to 90% relative humidity
The maximum load for the standard LS-X is 25kg. The load can be increased depending on the shaking parameters (speed/diameter). Please contact us, we are happy to support you. |
Yes
The LS-Z comes with three functional options: benchtop only/stand-alone, combinable with incubators from other manufacturers, or combined with the new Kuhner Kelvin+ incubator for temperature control.
The following flyers provide information about the machines and function-specific solutions.
Kuhner shakers are suitable for the cultivation of microbial, plant, human and animal cell cultures. Find more information about the different application areas and suitable product recommendations for optimal cultivation here.
Adolf Kühner AG (Headquarters)
Dinkelbergstrasse 1
CH-4127 Birsfelden (Basel)
Switzerland
We support our customers in implementation, maintenance and repair of all Kuhner products – efficiently and competently.
For Kuhner, the quality and durability of their shakers and bioreactors have always been the topics with the highest priority. On this account, Kuhner products have also proven their worth worldwide under GMP requirements. Documentation, development and production along the full life cycle of our products are continuously enhanced to match the requirements of 21 CFR and GAMP 5.
Read more
The world's most reliable shaking machines built in-house in Switzerland.
