Kuhner Kelvin⁺ benchtop shaker

Kuhner Kelvin⁺ benchtop shaker
Overview
Overview
Technical Data
Options
Accessories
Videos
PDF

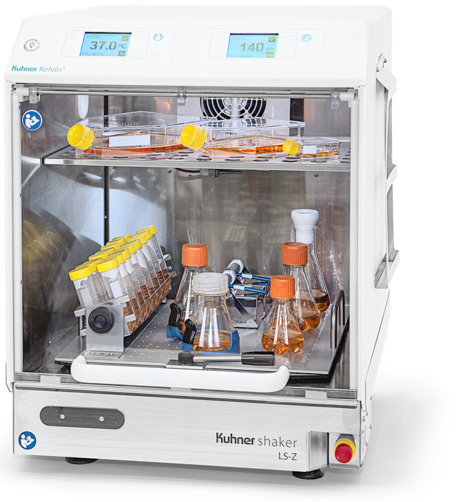

A compact sized shaker-incubator with an excellent temperature distribution

The Lab-Shaker LS-Z and the incubator Kuhner Kelvin+ combine approved Kuhner quality in a new modular system to provide maximum flexibility to our customers. The LS-Z, just like its predecessor LS-X, is a sturdy benchtop shaker designed for continuous and maintenance-free ope­ration. Our new Kuhner Kelvin+ is a compact sized incubator with an excellent temperature distribution.

Performance characteristics

  • Compact footprint
  • Hygienic design: easy cleaning
  • Fast regeneration time due to stainless steel chamber
  • Very good temperature distribution
  • Large feedthrough port
  • Kuhner TOM online measurement tool upgradable
5 year warranty

5 year warranty

Shaking diameter

Shaking diameter

Quiet operation

Quiet operation

Performance

Performance


Quality

Reliable technology by Kuhner

The in-house designed magnetic drive system of the LS-Z shaker guarantees accurate control and low energy consumption/heat dissipation even at high speeds. The maintenance-free direct drive is long lasting, robust, and economical. Our Kuhner Kelvin+ incubator has a precise temperature control and comes with a very consistent temperature distribution – for reliable and reproducible cultivation processes.


Flexibility

New modular system

The LS-Z comes with three functional options: benchtop only/stand-alone, combinable with incubators from other manufacturers, or combined with our new Kuhner Kelvin+ for temperature control. The LS-Z shaker will accept loads up to 25 kg and the shaking diameter can be adjusted at any time. There are three standard shaking diameters (12.5, 25 and 50 mm) with others available on request. The LS-Z shaker unit tolerates an ambient relative humidity of up to 90% and features a detachable control unit and power cube. Therefore, the LS-Z is extremely flexible regarding its installation site: it can be placed in any lab incubator or temperature controlled room.


Size

Can be placed almost anywhere

To take up as little work space as possible in your lab, the LS-Z shaker and Kuhner Kelvin+ both have a very small footprint and can thus either be placed under any standard table or lab bench or be used as a benchtop device. The compact Kuhner Kelvin+ has a flat front and space saving door mechanism. The big window provides a good overview of your cultivation vessels even with closed door.


Application

Starter model with great options

LS-Z and Kuhner Kelvin+ are the perfect starter set, e.g. for universities or start-ups with limited space and resources. They can be used for cultivation of microbial, plant, human and animal cell cultures. For cell culture fermentations, which require a humidity and CO2 controlled environment, LS-Z and Kuhner Kelvin+ are combinable with the Flask Aeration System by Kuhner.

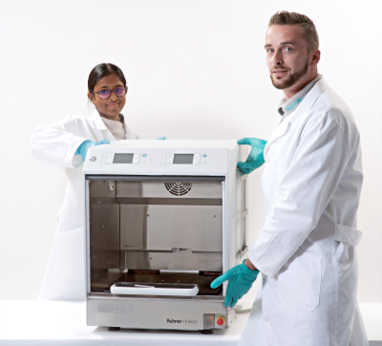

Direktantrieb

Automatisation

Features for automated processes

The LS-Z has a fixed stop position, which is especially useful for automated processes. The integration in a liquid handling system was successfully performed several times already. Due to the flexible Net60 interface, the LS-Z can be controlled by nearly every external software system.


Hygienic Design

Easy Cleaning

The drive is protected from spills and the Kuhner Kelvin+ incubator can be easily dismounted for cleaning the whole surface or removal of any unwanted liquid. The incubator chamber can be cleaned with chemicals or sterilized.


Warranty

Quality guaranteed

As with all Kuhner products, the LS-Z and the Kuhner Kelvin+ are cost effective investments in quality backed with a five year warranty.

Direktantrieb

LS-Z and Kuhner Kelvin⁺


Lab-Shaker LS-Z

Kuhner Kelvin+

Temperature  minimum

-

Min. ambient + 3°C

Temperature  maximum

-

60°C

Temperature  distribution

-

+/- 0.5°C (at 37°C, 100 rpm)

Principle of sensor

-

Pt-100

Power of heating

-

400W

Air circulation

-

190 m3/h

Power consumption typical

approx. 25W

approx. 130W

Gas volume

-

130 L

Weight shaker

46 kg

28 kg

Weight Power Cube

6.5 kg

-

Weight Controller

0.6 kg

-

Illumination

-

LED

Ambient temperature

-20 up to 80°C

10 up to 35°C

Ambient relative humitidy

up to 90 % (shaking unit)

 -

Operating menu in

DE, FR, EN, IT, ES

DE, FR, EN, IT, ES

Interface standard

CAN-Bus

CAN-Bus

Tray, size

E (420 x 420mm)

EX (500 x 420mm)

F (800 x 420mm)

E (420 x 420mm)

-

-

Loading maximum

up to 25 kg

-

Setting, digital

1 rpm

0.1°C

Control accuracy, absolute

+/- 0.5 rpm

<+/- 0.3°C

Timer

1 s – 999 h

1 s – 999 h (shaker only)

Acceleration

controlled

-

Active break

adjustable

-

Stop on position

adjustable

-

Mains Connection

220 - 240 V / 50 - 60 Hz

190 - 210 V / 50 - 60 Hz

110 - 120 V / 50 - 60 Hz

95 - 105 V / 50 - 60 Hz

220 - 240 V / 50 - 60 Hz

190 - 210 V / 50 - 60 Hz

110 - 120 V / 50 - 60 Hz

95 - 105 V / 50 - 60 Hz

Shaking motion

orbital, Ø 12.5 mm* 20...500 rpm

orbital, Ø 25.0 mm* 20...400 rpm

orbital, Ø 50.0 mm* 20...300 rpm

 -

Material

Stainless steel cover

Inner chamber stainless steel, outer chamber PUR (insulation), door polycarbonate

Options & Accessories

Light shading plate

-

to cover door

Shelf

-

available

Interface, optional

USB, Ethernet, digital, analogue

USB, Ethernet, digital, analogue

Stacking adapter

-

2 LS-Z mit Kuhner Kelvin+

IQ/OQ-Documentation

available

available

Dual table

available

-

*can be changed/other diameters on request

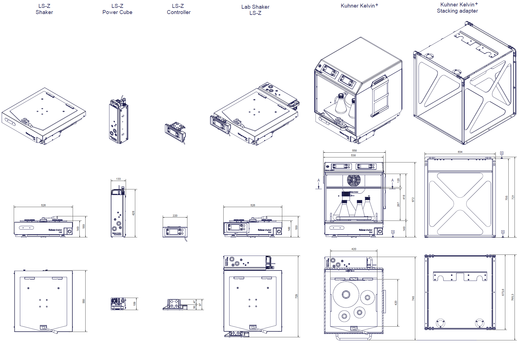

Dimensions (in mm)

LS-Z und Kuhner Kelvin⁺ dimensions (in mm)

Technical data subject to change

Overview options

Light shading plate

The light shading plate is easily placed in front of the door window to prevent radiation affecting the contents of the incubator chamber. It protects light sensitive media from UV, artificial and/or daylight. Simply lift up the light shading plate to look at the cultures without opening the incubator door. When light protection is no longer required, the plate is easily removed.

Check out the Kuhner EquipNote "Light protection for Kuhner incubators".


Black window

Available for light sensitive medium or organisms. Any Kuhner incubator shaker can be delivered with blackened windows to prevent unwanted daylight or UV radiation inside the incubator.

Check out the Kuhner EquipNote "Light protection for Kuhner incubators".


Kuhner TOM

LS-Z and Kuhner Kelvin+ can be combined with Kuhner TOM (Transfer-Rate Online Measurement) for the online measurement of oxygen transfer rate (OTR), carbon dioxide transfer rate (CTR) and the respiratory quotient (RQ) in up to 16 individual shake flasks. These data provide a better process understanding and guarantee an informed process development. TOM is easily installed and can be operated with various flask types and sizes including single use shake flasks. Kuhner TOM has zero footprint on the shaker tray as it is mounted above. More.

Kuhner TOM

IQ/OQ-Documentation

IQ-OQ (Installation Qualification and Operation Qualification) is an equipment qualification according to GMP procedure. Kuhner offers this service which can also be carried out at the customer’s premises.

GMP

Overview accessories

Do you know this accessory?

Microtiter trays are suitable for all types of plates (deep well, low well, 24, 48 and 96 well).

Icon Touchscreen

Universal tray

The universal tray can be fitted with clamps for Erlenmeyer flasks, test tube holders, microtiter plates, or custom made holders to suit your requirements. Rearranging these clamps and holders is quick and simple.

Order number

Description

SM3002

Universal tray EU (420 x 420 mm)

SM312500U

Clamp U-2500 for Ultra Yield flask from Thomson

Universaltablar
ISF1-X_FU-20tray_8Ultra-20Yield

Universal tray FU with 8x Ultra Yield flasks (2500 mL) from Thomson


Tray with fixed clamps

The clamps are riveted onto these trays and cannot be removed. They offer maximum stability and will often hold a larger number of flasks than universal trays. These trays are available in a variety of flask clamp sizes from 25 to 6000ml.

Tray E (420 x 420 mm)

Order number

Description

Number of clamps

SM320025

E-25 ml

81

SM320050

E-50 ml

50

SM320100

E-100 ml

39

SM320125

E-125 ml

30

SM320150

E-150 ml

30

SM320200

E-200 ml

20

SM320250

E-250 ml

18

SM320300

E-300 ml

15

SM320500

E-500 ml

12

SM321000

E-1000 ml

9

SM321500

E-1500 ml

5

SM322000

E-2000 ml

5

SM323000

E-3000 ml

4

SM324000

E-4000 ml

2

SM325000

E-5000 ml

2

SM326000

E-6000 ml

1

F_Tablar_mit_genieteten_Klammern_Kuhner

Trays for microtiter plates

Kuhner has designed trays specifically for microtiter plates. Handles at the front of the tray open and close the special clamping mechanism allowing plates to be loaded and unloaded. Trays of different heights (22, 47 and 77mm) allow the stacking of up to four microtiter plates. The trays are suitable for all types of plates (deep well, low well, 24, 48 and 96 well).

Tray E (420 x 420 mm)

Order number

Description

Number of mircotiter plates

SM3502.22

E-MT.22

12 - 24

SM3502.47

E-MT.47

12 - 48

SM3502.77

E-MT.77

12 - 72

Tray_Microtiterplates

Tray for microtiter plates (springs)

Kuhner has designed a new tray for microtiter plates. This tray is fitted with springs which allows each well plate to be loaded and unloaded individually.

This new tray is particularly suitable for the special holder with filter lid for deep well microtiter plates.

Order number

Description

Number of microtiter plates

SM3502A

E-tray (420 x 420 mm) for deepwell or microtiter plates

1-12

F-Tablar für Mikrotiterplatten (Federn)
Tablare für Mikrotiterplatten (Federn)

F-tray (800 x 420 mm)



Tray with rubber mat

The whole tray is covered with a rubber mat and is particularly suitable for shaking containers at low speed (e.g. blood bags).

Order number

Description

SM3602

Rubber mat EG (420 x 420 mm)

Tablar mit Gummimatte

Tray with sticky strips

A tray fitted with sticky strips is especially useful for flasks shaken at low speeds (up to 200 rpm). The flask is placed directly on the sticky strip without the need for any other support. Flasks of all sizes can be used. Sticky strips are available individually or in sets and can also be supplied already fitted to a tray. The E-size tray accepts four strips.

Order number

Description

SMX330001K

E-tray with 4 sticky strips (clear)

SMX837001K

1 sticky strip: 385 x 85 x 3 mm (clear)

Tablar mit Klebestreifen


Tray with support bars

These trays offer an alternative to both clamps and sticky mats and are ideal for tall containers. The tray is covered with a rubber mat and has an upright at each corner. The E size tray is fitted with four cross supports. These support bars securely clamp containers.

Order number

Description

Number of longitudinal girders

SM4120.4

Tray EA with rubber mat and 4 cross supports

2

F-Tablar mit Aufbausystem und Querträger

Tray for separating vessels

Kuhner has also designed a special tray for shaking separating vessels. This very flexible tray can take vessels of various sizes. It is also possible to add a second layer and double the capacity. Movable retaining rods allow vessels to be installed easily.

Tray E (420 x 420 mm)

Order number

Description

Number of separating vessels

SM420250

ES-250

5

SM4202502

ES-250/2

10 (2 layers)

SM420500

ES-500

4

SM4205002

ES-500/2

8 (2 layers)

SM421000

ES-1000

3

SM4210002

ES-1000/2

6 (2 layers)

Tablare für Scheidetrichter

Kuhner Insight Software

The user-friendly Kuhner Insight software was developed for supervision, monitoring, and recording of data. The software is easy to operate More.

Kuhner Insight Software

Interfaces

Kuhner shakers are equipped with a CAN-bus. CAN-USB, CAN-Ethernet, EMI-60 and NET-60 are all well established interfaces. More.

Kuhner Insight Software

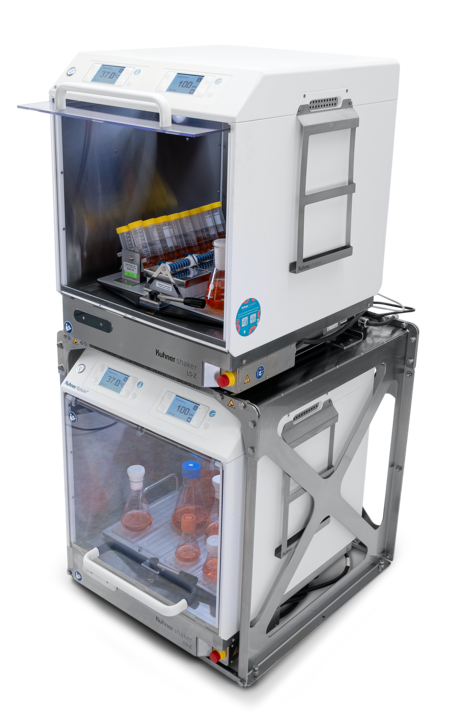

Stacking adapter

A stacking adapter allows to stack two LS-Z with Kuhner Kelvin+


Shelf

Above the shaking tray of shaker, a fixed shelf can be placed inside the Kuhner Kelvin+ incubator. This can be used for non-shaken experiments and cultures, e.g. T-flasks with animal cell cultures.


Light shading plate

The light shading plate is easily placed in front of the door window to prevent radiation affecting the contents of the incubator chamber. It protects light sensitive media from UV, artificial and/or daylight. Simply lift up the light shading plate to look at the cultures without opening the incubator door. When light protection is no longer required, the plate is easily removed.

Check out the Kuhner EquipNote "Light protection for Kuhner incubators".

LS-Z (with Kelvin+) - The modularity of our 3-in-1 shaker

The LS-Z comes with three functional options: benchtop only/stand-alone, combinable with incubators from other manufacturers, or combined with the new Kuhner Kelvin+ incubator for temperature control.

The following flyers provide information about the machines and function-specific solutions.
