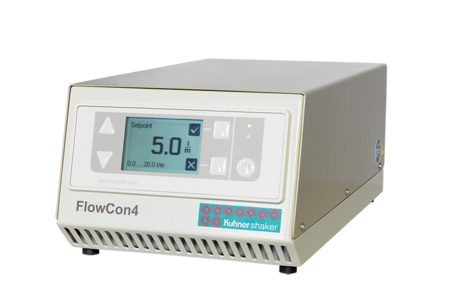

FlowCon 2/3/4 Gas mixing

FlowCon 2/3/4 Gas mixing
Overview
Overview
Technical Data
PDF

Stand-alone gas mixing device

The Kuhner FlowCon has been developed for the R&D environment and the initial production steps in bioreactors with disposable bags. Whether stabilizing the pH in cell cultivations with CO2,or reducing oxygen concentration for microaerophilic organisms the FlowCon gas mixer meets all user needs.  The FlowCon can be used as a stand-alone device, or can be integrated with the Kuhner equipment family (incubator shakers, disposable bioreactors, …).

Performance characteristics

  • Mixing up to four gases
  • (also gas mixtures can be connected)
  • Selectable flow rate: 0-1 [sL/min], 0-20 [sL/min]
  • Kuhner Insight Software control
  • Integration in Kuhner shakers
  • Integrated pressure sensor
5 year warranty

5 year warranty

CO2 control

CO2 control

O2 control

Ocontrol

Performance

Performance

Further information

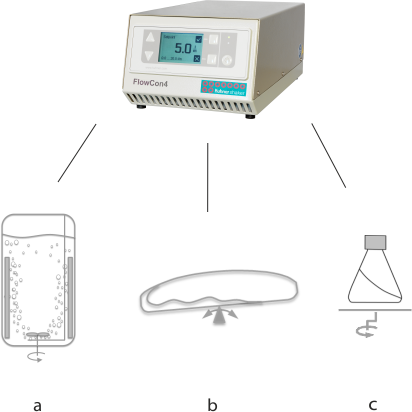

FlowCon

a) Stirred tank bioreactor
b) Other disposable systems
c) Orbital Shaken bioreactor


Reproducibility

Reproducibility

Up to four mass flow controllers ensure high accuracy and reproducibility of the gas mixture. The number of mass flow controllers can be adapted to individual requirements (FlowCon 2/3/4). An integrated pressure sensor prevents overpressure in the connected bioreactor, by reducing the gas flow in the first step and shutting off the gas flow in the second step. Step limits can be freely programmed by the user. Integrated gas filters and back pressure valves ensure a long interference free operating time of the FlowCon.

 The Kuhner Insight software provides data logging, programming and controlling.

FlowCon 2/3/4

Number of mass flow controllers

1, 2, 3 or 4

Dimensions

225x158x430 (WxDxH) [mm]

Ambient conditions

5-40 [°C],
max. 85 [% rH]

Input

up to 4 gases, push connector 6 [mm]

+ air
+ oxygen
+ nitrogen
+ carbon dioxide
(also gas mixtures can be connected)

Input pressure

1-2 bar

Output

1, (tube fitting for tube ID 13 [mm])

Flow rates

0-1 [sL/min]
0-2 [sL/min]
0-20 [sL/min]

Accuracy

±1.5% from the end value

Stand-alone operation

yes

Software

Kuhner Insight (optional)
data logging,
programming,
controlling

Interface, standard

CAN-Bus

Interface, optional

USB, Ethernet, digital, analogue

Power supply

90-230V, 50-60Hz

Pressure sensor

integrated, 0-400 [mbar], programmable, prevents overpressure in the connected vessel

Air filter

integrated, prevents blocking of the mass flow controllers

Back pressure valve

integrated, prevents reflux into the mass flow controllers

Technical data subject to change

FlowCon

The following flyers provide information about the machines and function-specific solutions.

Kuhner shakers are suitable for the cultivation of microbial, plant, human and animal cell cultures. Find more information about the different application areas and suitable product recommendations for optimal cultivation here.

Stem cells
Cell culture
Bacteria
Plant cells & algae
