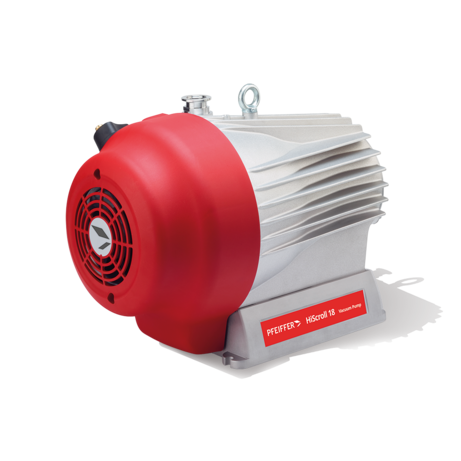

The exceptionally quiet, efficient and oil-free vacuum pumps
For further information:
| Dimensions (L × W × H) | 419 x 265 x 304 mm |
| Weight, approx. | 23 kg |
| Nominal pumping speed | 18,1 m³/h |
| Pumping speed in boost mode | 21,5 m³/h |
| Ultimate pressure (gas ballast valve closed) | 0,006 hPa (mbar) |
| Ultimate pressure (gas ballast valve open level 1) | 0,05 hPa (mbar) |
| Ultimate pressure (gas ballast valve open level 2) | 0,4 hPa (mbar) |
| Power consumption at ultimate pressure | 235 W |
| Power consumption at Standby- mode | 100 W |
| Motor speed | 624–1870 min⁻¹ |
| Rated motor speed | 1560 min⁻¹ |
| Sound pressure level (ISO 3744) | 47 dB(A) |
| Gas inlet | DN 25 ISO-KF |
| Gas outlet | DN 25 ISO-KF |
The following flyer and brochure provide information about the machines and function-specific solutions.
