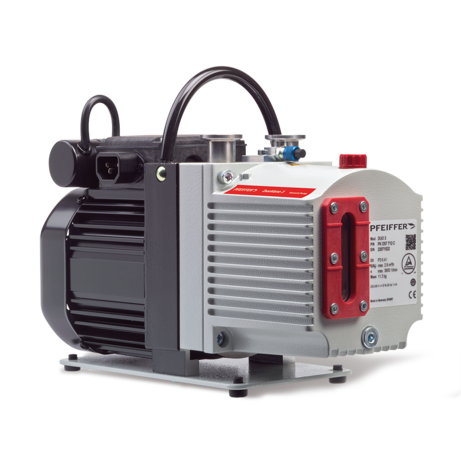

Two-stage oil-lubricated rotary vane vacuum pumps DuoVane:
For further information:
| Dimensions (L × W × H) | 356 x 143 x 207 mm |
| Weight approx. | 13 kg |
| Nominal pumping speed | 2,5 m³/h |
| Ultimate pressure (gas ballast valve closed) | 3 · 10⁻³ hPa (mbar) |
| Ultimate pressure (gas ballast valve open) | 3 · 10⁻² hPa (mbar) |
| Motor phase | Alternating current |
| Rated motor Power | 0,25 kW |
| Rated motor speed | 3000 min⁻¹ |
| Sound pressure level (50 Hz) | 54 dB(A) |
| Oil filling | 0,4 l |
| Gas Inlet | DN 16 ISO-KF |
| Gas Outlet | DN 16 ISO-KF |
| Corrosive gas version C | x |
The following flyer and brochure provide information about the machines and function-specific solutions.
