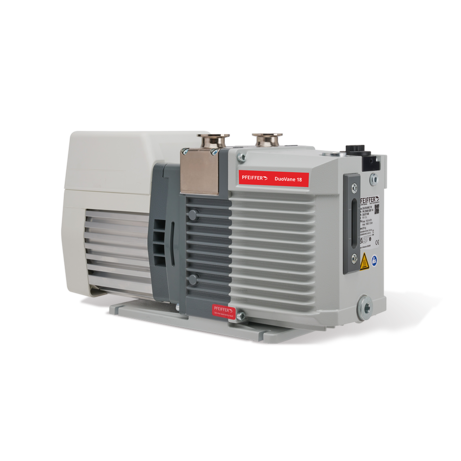

Two-stage oil-lubricated rotary vane vacuum pumps DuoVane:
For further information:
| Dimensions (L × W × H) | 465 x 164 x 237 mm |
| Weight approx. | 31 kg |
| Nominal pumping speed | 14 m³/h |
| Ultimate pressure (gas ballast valve closed) | 3 · 10⁻³ hPa (mbar) |
| Ultimate pressure (gas ballast valve open) | 1 · 10⁻² hPa (mbar) |
| Motor phase | Wechselstrom/ Drehstrom |
| Rated motor Power | 0,55 kW |
| Rated motor speed | 1500 min⁻¹ |
| Sound pressure level (50 Hz) | 52 dB(A) |
| Oil filling | 1,3 l |
| Gas Inlet | DN 25 ISO-KF |
| Gas Outlet | DN 25 ISO-KF |
| Corrosive gas version C |
The following flyer and brochure provide information about the machines and function-specific solutions.
