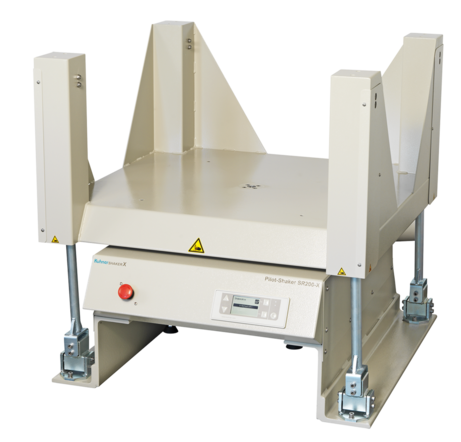

SR200-X industrial shaker

SR200-X industrial shaker
Technical Data

Flexible shaking machine for heavy loads that can be customized to your requirements

With the SR200-X, Kuhner offers a very flexible shaking machine concept. The SR200-X consists of a solid base incorporating the Kuhner direct drive system.

Performance characteristics

  • For use with customer specific vessels
  • Solid base with integrated Kuhner direct drive
  • Designed for heavy loads
  • Ideal for climate controlled rooms
  • Orbital shaking with maximum speed of 300 rpm

5 year warranty

5 year warranty

Large shaking capacity

Large shaking capacity





Further information

Shaking diameter

Dr. Shakers Helpful Hint N°4 explains what the shaking diameter is and how you can determine the shaking diameter of your lab shaker.

Dr. Shaker

Find information on the importance of the shaking diameter for biological cultivations in our Shaking Technology Forum: Why is the shaking diameter important?


Maximum flexibility through use of various vessels

The superstructure can be custom built to suit the customer’s application e.g. cell cultivation in containers of up to 100 litres; or for particularly gentle mixing of solutions such as protein solutions, in different types of vessels.

This machine is suitable for use in climate controlled rooms as the Kuhner direct drive generates very little heat. The SR200-X is designed for maintenance-free continuous operation, with a maximum speed of 300rpm and a standard orbital shaking diameter of 50mm. Other user specific diameters are possible.

We subject all our shaking machines to an elaborate final test before delivery and send the test protocols to our customers.




20-300  rpm (depending on medium and vessel type)


50 mm (orbital motion)


340 kg

Accuracy, absolute

± 0.5 rpm

Setting, digital

1 rpm

Active brake



CAN-Bus, RS232

Loading, maximum

on request

Technical data subject to change

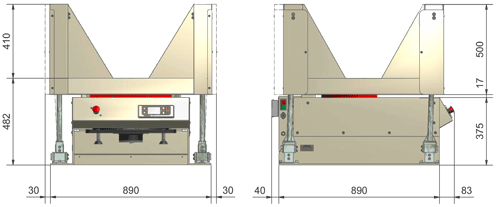

Dimensions (in mm)


Kuhner Insight Software


Shaking speed


Mains connection


190 - 210 V / 50-60 Hz


110 - 120 V / 50-60 Hz


95 - 105 V / 50-60 Hz

Technical data subject to change

Overview options


On request the SR200-X can be fitted with wheels, which enables the user to move the machine easily.


IQ/OQ Documentation

IQ-OQ (Installation Qualification and Operation Qualification) is an equipment qualification according to GMP procedure. Kuhner offers this service which can also be carried out at the customer’s premises.


Overview Accessories

Kuhner Insight Software

The user-friendly Kuhner Insight software was developed for supervision, monitoring, and recording of data. The software is easy to operate. More.

Kuhner Insight Software


Kuhner shakers are equipped with a CAN-bus. CAN-USB, CAN-Ethernet, EMI-60 and NET-60 are all well established interfaces. More.

Kuhner Insight Software

Good to know

Is Kuhner able to adapt the SR200-X to individual customer requirements?

Yes, Kuhner can customize this shaker for many types of vessels e.g. 100L containers.

Is IQ-OQ documentation available for the shakers?


The following flyers provide information about the machines and function-specific solutions.

Kuhner shakers are suitable for the cultivation of microbial, plant, human and animal cell cultures. Find more information about the different application areas and suitable product recommendations for optimal cultivation here.
