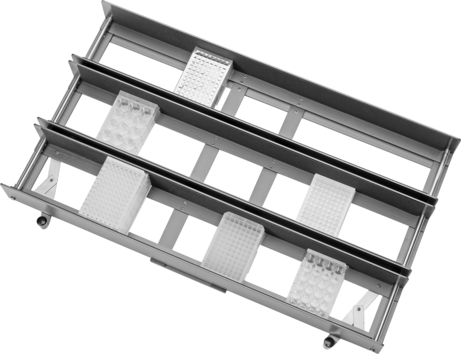

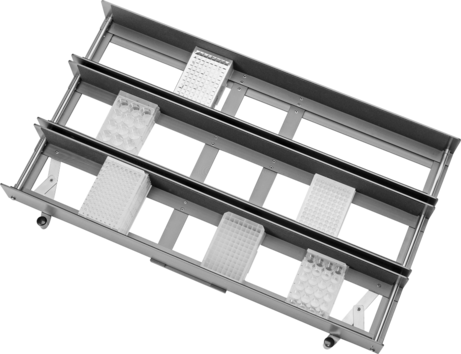

Kuhner has designed trays specifically for microtiter plates. Handles at the front of the tray open and close the special clamping mechanism allowing plates to be loaded and unloaded. Trays of different heights (22, 47 and 77mm) allow the stacking of up to four microtiter plates. The trays are available in three sizes and suitable for all types of plates (deep well, low well, 24, 48 and 96 well).
Order number | Description | Number of microtiter plates |
---|---|---|
SM3502.22 | E-MT.22 | 12 bis 24 |
SM3502.47 | E-MT.47 | 12 bis 48 |
SM3502.77 | E-MT.77 | 12 bis 72 |
Order number | Description | Number of microtiter plates |
---|---|---|
SM3503.22 | F-MT.22 | 24 bis 48 |
SM3503.47 | F-MT.47 | 24 bis 96 |
SM3503.77 | F-MT.77 | 24 bis 144 |
Order number | Description | Number of microtiter plates |
---|---|---|
SM3504.22 | C-MT.22 | 35 bis 70 |
SM3504.47 | C-MT.47 | 35 bis 140 |
SM3504.77 | C-MT.77 | 35 bis 210 |
Send us a sample of the container that needs to be shaken.
We will build a suitable holder.
Custom-made accessories, an everyday occurance for us.
