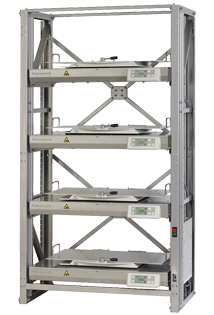

SBM/SS-X rack shaker

SBM/SS-X rack shaker
Overview
Overview
Technical Data
Options
Accessories
FAQ
PDF

Extendable rack system with integrated shaking units suitable for temperature controlled rooms

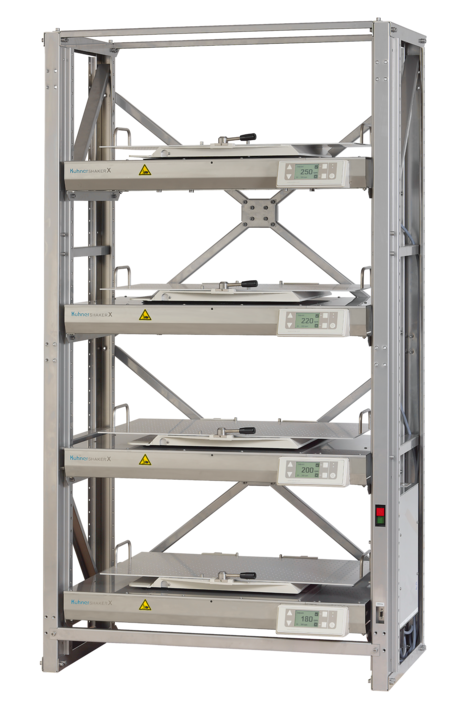

The Kuhner Rack-Shaker SBM / SS-X is a space saving shaker system designed for environmental rooms, laboratories and corridors.

Performance characteristics

  • Integrated shaking system with racks and shaking units
  • Robust rack system
  • Ideal for temperature controlled rooms, laboratories and corridors
  • Each shaking unit has its own direct drive
  • Low heat loss with energy efficient drive system

5 year warranty

5 year warranty

Large shaking capacity

Large shaking capacity

Shaking diameter

Shaking diameter

Performance

Performance

Further information

Shaking diameter

Dr. Shakers Helpful Hint N°4 explains what the shaking diameter is and how you can determine the shaking diameter of your lab shaker.

Dr. Shaker

Find information on the importance of the shaking diameter for biological cultivations in our Shaking Technology Forum: Why is the shaking diameter important?


Flexibility

Flexible, integrated system

Up to four shaking units (SS-X) can be incorporated into a single rack. The robustly built rack system ensures the shaking units run quietly. The rack system is designed and constructed for maximum flexibility, can be adapted to fit almost any room and is easily extended. The configuration of the shaking units can be altered at any time with little effort. Each shaking unit is fitted with a speed controller and operates independently. Users are able to choose either orbital or linear motion as well as a suitable shaking diameter for each unit.


Climate

Ideal solution for temperature controlled rooms

The rack system is suitable for use in temperature controlled rooms. Racks and shaking units are made of stainless steel with hermetically sealed electronic parts.

SBM/SS-X

Low energy

Low energy consumption – low heat generation

The Kuhner drive emits very little unwanted heat which is an important factor when using the rack system in temperature controlled rooms. The low energy consumption of the drive means low heat generation.

We subject all our shaking machines to an elaborate final test before delivery and send the test protocols to our customers.

Technical data

Baseline model

SBM


102005 (SBM)

Option: Extension model


100936 (SEM)* (requires SBM)





Machine


SBM

Weight SBM

54kg

Weight SS-X

60kg

Operation menu in

German, French, English, Italian, Spanish

Interface, standard

CAN-Bus

Interface, optional

USB, Ethernet, digital, analogue

Ambient temperature

0°C up to 60°C

Consumption, maximum

240W ( 4 machines, max. Acceleration)

Consumption, maximum

480W (4 machines with high torque drive)

Consumption, typical

50W (4 machines)

Technical data subject to change

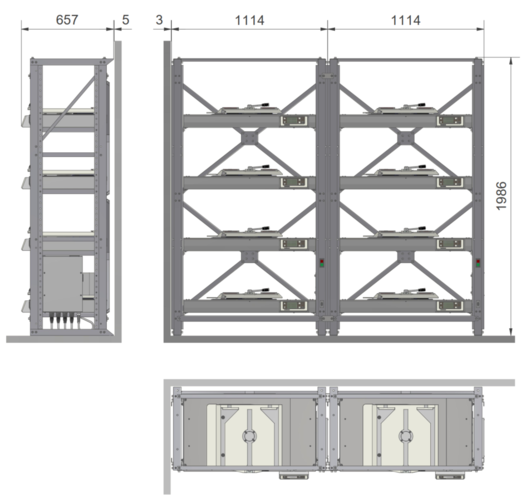

Dimensions (in mm)

SBM/SS-X rack shaker

Mains connection


 110 - 120 V / 50-60 Hz



 95 - 105 V / 50-60 Hz

Shaking unit SS-X

Tray, size

F (800x420mm)

Loading, maximum

25kg

Setting, digital

1 rpm

Accuracy, absolute

≤ 800 rpm = ± 0.5 rpm
> 800 rpm = ± 1.0 rpm

Timer

1s ... 999h

Acceleration

controlled

Active brake

adjustable

Stop on position

adjustable

Shaking motion


Speed

* orbital, Ø 12.5mm

20...500 rpm

* orbital, Ø 25.0mm

20...400 rpm

* orbital, Ø 50.0mm

20...300 rpm

* linear, ↔ 12.5mm

20...400 rpm

* linear, ↔ 25.0mm

20...300 rpm

* linear, ↔ 50.0 mm

20…200 rpm

* can be changed

Technical data subject to change

Overview options


Illumination unit for photosynthesis (LED)

The Rack-Shaker can be fitted with LED modules for the cultivation of phototrophic organisms. The control module allows full programming of night/day cycles and variable light intensity.

LED

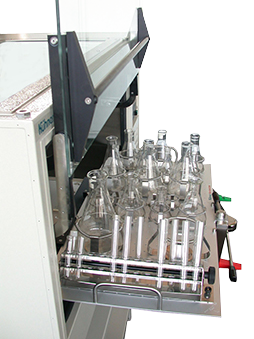

Pull-out table

The pull-out table is designed for the ISF1-Z and ISF4-X incubator shakers as well as the Rack System. This remarkable device makes loading and unloading trays much easier.

Ausziehtisch

Dual table

The dual table is an easy and economical way of doubling the shaking capacity. The dual shaking table consists of two levels. Each level will accept an F size tray. However, with the dual table the shaking speed is limited to a maximum of 200 rpm.

Doppelschütteltisch

EPFL-table

Do you perform screenings with a large number of 50 ml bioreactors (TPP, Falcon etc.) or microtiter plates? Would you like to shake different cultivation vessels on the same shaker and be able to change the composition quickly and easily? Then the Kuhner EPFL-table is the optimal solution for you. The shaker table has 5 individual clamps, so that 5 different holders or EPFL universal trays can be clamped. By opening a clamp, a single holder or universal tray can be easily removed from the incubator shaker and processed under a clean bench while the remaining holders/trays keep on shaking.

The EPFL universal tray can be equipped with clamps for Erlenmeyer flasks, Schott laboratory bottles, test tube holders, microtiter plates or customer-specific holders. Rearrangement of these clamps and holders is quick and easy. The universal tray can also be equipped with sticky strips. Sticky strips are used to fix shake flasks or other equipment on shaking trays. They offer easy handling and flexible positioning of different sizes and shapes of shake flasks and other vessels.

Special holders for microtiter plates, 50 mL centrifuge tubes (Falcons) and 600 mL reaction vessels are also available for the EPFL-table.

Instead of 5 individual holders, a large Kuhner F-tray (800 x 420mm) can also be clamped onto the shaker table.

For the smaller (incubator) shakers from Kuhner, correspondingly adapted EPFL-tables with 3 or 4 clamps are available (LT-X: 3 clamps, LS-Z: 3 or 4 clamps).

EPFL

EPFL-table

EPFL

EPFL-table with different holders

EPFL

F-size tray clamped on the EPFL-table

EPFL

Clamp handle

Individual parts

Order number

Description

100125

Holder for 24 x 50 ml Falcon/TPP tubes mounted on a base plate

Halterung für 24 x 50 ml Zentrifugenröhrchen
Halterung für 24 x 50 ml Zentrifugenröhrchen

Order number

Description

104173

Cover clamp for 4 deepwell MTPs (Duetz)

Halterung (Duetz) für 4 Deepwell Mikrotiterplatten (MTP)

Order number

Description

104104

Universal clamp for 12-16 lowwell MTPs or 4 deepwell MTPs (Duetz)

Halterung (Duetz) für 12-16 Low-Well MTP oder 4 Deep-Well MTP

Order number

Description

107322

EPFL-Tray Universal kpl.

can be fitted with clamps

EPFL-Tablar Universal kpl.

Order number

Description

105186

Holder 5x600mL TPP tubes, straight tubes

108226

Tube set for holder 5 x TPP 450ml

Reagenzglashalter für 5x600mL TPP tubes

Order number

Description

100633

Holder for 3 x 600ml reactor

Halter für 3 x 600ml Reaktoren

AerationSystem and FlowCon

AerationSystem and FlowCon provide the ideal system for carrying out cell/stem cell cultivations in a simple, fast, and inexpensive manner.

Lab shakers in temperature-controlled rooms and incubator shakers without humidity and CO2-control can be equipped with the AerationSystem and FlowCon to easily implement humidification and a controlled gas composition for carrying out cell cultivations (e.g., CHO, HEK cells…) in shake flasks.

AerationSystem

The FlowCon is a stand-alone gas mixing device and provides a precise gas composition and flow rate. Simultaneously, the AerationSystem (consisting of GasDivider and special shake flask caps) humidifies and distributes the gas flow evenly to the connected shake flasks. Evaporation losses from the shake flasks are significantly reduced, which is particularly advantageous for very long cultivation times (such as cell culture processes) and contributes to successful cultivations. Another advantage is that opening the incubator door does not affect the gas composition in the shake flasks when they are connected to the aeration system.

By controlling the composition of the inlet air with the FlowCon, it is not only possible to supplement CO2 but also to increase or reduce the concentration of oxygen (O2) or implement anoxic conditions using nitrogen (N2). This control of gas compositions allows for a variety of different applications, including stem cell processes for gene therapy or cultivated meat that require a physiological oxygen concentration at 5% O2 or anaerobic cultivations in a nitrogen atmosphere.

FlowCon

The patented Kuhner GasDivider humidifies the mixed, dry gas flow provided by the FlowCon and distributes it precisely and evenly across the attached shake flasks, independent of shake flask type, tube length and any filters in-between. As the GasDivider is placed on the shaking tray of the (incubator) shaker, the gas flow is also perfectly adapted to the temperature of the incubator shaker or temperature-controlled room.


TabCom

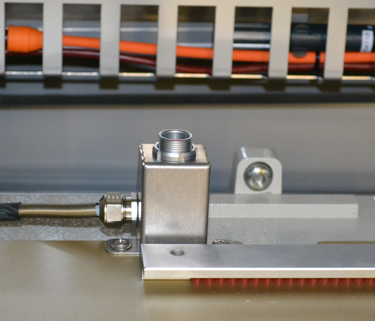

The TabCom option from Kuhner consists of a cable for power and data with the connection port integrated in the shaking table (see pictures below). A cable guide prevents the cable breaking and ensures secure data recording. The flexibility of TabCom means online measurement systems can be easily integrated.

Port_TabCom
TabCom_pull-out-table

IQ/OQ-Documentation

IQ-OQ (Installation Qualification and Operation Qualification) is an equipment qualification according to GMP procedure. Kuhner offers this service which can also be carried out at the customer’s premises.

GMP

Overview accessories

Universal tray

The universal tray can be fitted with clamps for Erlenmeyer flasks, test tube holders, microtiter plates, or custom made holders to suit your requirements.

Rearranging these clamps and holders is quick and simple.

Order number

Description

102212

Universal tray FU (800 x 420 mm)

101422

Clamp U-2500 for Ultra Yield flask from Thomson

Universaltablar
ISF1-X_FU-20tray_8Ultra-20Yield

FU-tray with 8x Ultra Yield flasks (2500 mL) from Thomson


Special universal tray

A special F-size universal tray (800x420mm) is now available to shake large Erlenmeyer flasks. It is ideal for cell culture.

This tray allows parallel shaking of 7 x 3L Corning Fernbach culture flasks or 7 x 5L Thomson Optimum Growth flasks at a maximum orbital diameter of 50mm. The FUM-V has no handles and a V support underneath the tray raises it above the clamping mechanism creating more space for flasks.

Clamps must be ordered separately. (Order number: 101425)

Order number

Description

100546

Special universal tray, FUM-V with V support
(Clamps not included)

101425

U-3000F clamp for Fernbach flasks:
1 x 5L Thomson flask or
1 x 3L Corning Fernbach culture flask

FUV_tray_cellculture

Tray with fixed clamps

The clamps are riveted onto this tray and cannot be removed. It offers maximum stability and will often hold a larger number of flasks than an universal tray. These trays are available in a variety of flask clamp sizes from 25 to 6000ml.

Order number

Description

Number of clamps

101557

F-25 ml

153

101558

F-50 ml

100

101559

F-100 ml

74

101560

F-125 ml

60

101561

F-150 ml

60

101562

F-200 ml

40

101563

F-250 ml

40

101564

F-300 ml

30

101565

F-500 ml

26

101566

F-1000 ml

16

101567

F-1500 ml

12

101568

F-2000 ml

9

106226

F-2500U

8

101569

F-3000 ml

8

101570

F-4000 ml

5

101571

F-5000 ml

4

F_Tablar_mit_genieteten_Klammern_Kuhner

Tray for microtiter plates

Kuhner has designed trays specifically for microtiter plates. Handles at the front of the tray open and close the special clamping mechanism allowing plates to be loaded and unloaded. Trays of different heights (22, 47 and 77mm) allow the

stacking of up to four microtiter plates. The tray is suitable for all types of plates (deep well, low well, 24, 48 and 96 well).

Order number

Description

Number of mircotiter plates

104900

F-MT.22

24 -48

104894

F-MT.47

24 -96

104898

F-MT.77

24 -144

Tray_Microtiterplates

Tray for microtiter plates (springs)

Kuhner has designed a new tray for microtiter plates. This tray is fitted with springs which allows each well plate to be loaded and unloaded individually. The tray is available in three sizes: E (420x420mm), EX (500x420mm) and F (800x420mm).



This new tray is particularly suitable for the special holder with filter lid for deep well microtiter plates.

Order number

Description

Number of mircotiter plates

104825

F-tray (800x420mm) for deepwell or microtiter plates

1-24

F-Tablar für Mikrotiterplatten (Federn)
Tablare für Mikrotiterplatten (Federn)

F-Tablar (800 x 420 mm)


F-tray with pins

Kuhner has designed a new F-size tray (800 x 420mm) which is ideal for cell culture. The F-V5000/7 tray allows parallel shaking of 7 x 3L Corning Fernbach culture flasks, 7 x 5L Corning Erlenmeyer flasks or 7 x 5L Thomson Optimum Growth flasks. Flasks are held in position by pins and are easily placed on the tray and removed just as quickly.

This tray has been designed for easy cleaning and efficient handling of samples.

Order number

Description

104956

F-V5000/7
F-tray with pins for 7 flasks:
- 3L or 5L Corning
- 5L Thomson

F-V5000_7

F-tray with rubber mat

The whole tray is covered with a rubber mat and is particularly suitable for shaking containers at low speed (e.g. blood bags).

Order number

Description

105311

Rubber mat FG (800 x 420 mm)

Tablar mit Gummimatte

Tray with sticky strips

A tray fitted with sticky strips is especially useful for flasks shaken at low speeds (up to 200 rpm). The flask is placed directly on the sticky strip without the need for any other support. Flasks of all sizes can be used. Sticky strips are available individually or in sets and can also be supplied already fitted to a tray. The F-size tray accepts eight strips.

Order number

Description

105200

F-size tray with 8 sticky strips (clear)

105194

1 sticky strip: 385 x 85 x 3 mm (clear)

Tablar mit Klebestreifen

Tray with PC-plate for sticky strips

The PC-plate increases the adhesion of the sticky strips. This is particularly helpful if using flasks >500ml.

Order number

Description

100531

F-size tray with 8 sticky strips (clear)

100531

F-size tray with 2 big sticky strips (clear)

105194

1 sticky strip: 385 x 85 x 3mm (clear)

105196

1 big sticky strip: 395 x 385 x 3mm (clear)

Tray with PC-plate for sticky strips

Dual tray

The dual tray offers two shaking levels and doubles the capacity. It is available in EXU, EX, FU and F size and the upper tray can be removed.
Please note the shaking speed is limited.

Order number

Description

102217

two FU trays with 180mm distance (with holes)

102218

two F trays with 180mm distance
(no holes for sticky strips / rubber mats)

102219

two FU trays with 200mm distance (with holes)

102220

two F trays with 200mm distance

(no holes for sticky strips / rubber mats)

Doppeltablar

Tray with support bars

This tray offers an alternative to both clamps and sticky mats and is ideal for tall containers. The tray is covered with a rubber mat and has an upright at each corner. The F-tray is fitted with six cross supports. These support bars securely clamp containers.

Order number

Description

Number of longitudinal girders

106134

FA-tray with rubber mat and 6 cross supports

2

F-Tablar mit Aufbausystem und Querträger

Tray for separating vessels

Kuhner has also designed a special tray for shaking separating vessels. This very flexible tray can take vessels of various sizes. It is also possible to add a second layer and double the capacity. Movable retaining rods allow vessels to be installed easily.

Order number

Description

Number of vessels

SM430250

FS-250

10

SM4302502

FS-250/2

20 (2 layers)

SM430500

FS-500

8

SM4305002

FS-500/2

16 (2 layers)

SM431000

FS-1000

6

SM4310002

FS-1000/2

12 (2 layers)

Tablare für Scheidetrichter

2D-Bag-tray (Cryo)

This tray was developed to shake (orbital or linear) 2D-Bags. Rubber bands secure for example smaller blood and cryo bags. The tray is compatible with ISF1-Z, ISF4-X, Rack System (SBM/SS-X) and LS-Z shakers. It accepts various brands and sizes of pillow shaped single-use bags:

  • 1 x 20L (10L working volume) cultivation bags
  • 2 x 10L (5L working volume) cultivation bags
  • 10 x 500ml or 12 x 250ml cryo bag

Order number

Description

105017

F-tray for 2D-bag with working volume 1/5/10L

2D-Bag-Tablar (Kryo)

2D-Bag-tray (Flex)

This tray was developed for shaking (orbital or linear) different types of 2D-bag. The tray consists of an aluminium base with a flexible mounting system on top.The mounting system can be manually adjusted to facilitate the controlled fixing of different sized cultivation bags. The mounting bars on both longitudinal sides can be moved up and down to hold the cultivation bag in place, while rubber bands will secure the smaller blood and cryo bags. The F-2D-Bag-tray is compatible with ISF1-Z, ISF4-X, Rack System (SBM/SS-X) and LS-Z shakers. The tray accepts various brands and sizes of pillow shaped single-use bags:

  • 1 x 20L (10L working volume) cultivation bags
  • 2 x 10L (5L working volume) cultivation bags
  • 10 x 500ml or 12 x 250ml cryo bags

Visit our poster gallery and find more information on the poster "Characterisation of a RSB 20 L.pdf"

Order number

Description

105052

F-Tray for 2D-bag with working volume 1/5/10L

2D-Bag-Tablar (Kryo)

Kuhner Insight Software

The user-friendly Kuhner Insight software was developed for supervision, monitoring, and recording of data. The software is easy to operate. More.

Kuhner Insight Software

Interfaces

Kuhner shakers are equipped with a CAN-bus. CAN-USB, CAN-Ethernet, EMI-60 and NET-60 are all well established interfaces. More.

Kuhner Insight Software

Shelf

The Rack System can be fitted with a shelf as an alternative to the shaking units, which allows cultivation in petri dishes.

Order number

Description

105591

Shelf for SBM/SS-X

Good to know

Is linear shaking available?

Yes

What is needed for a double rack system?

The core of the rack system is the SBM (System Basic Module). To extend this a SEM (System Extension Module) must be ordered. Each further extension requires another SEM.

Can each shaking unit be set independently?

Yes, both shaking diameter and speed can be individually set for each unit.

Is it possible to order a combination of stationary shelves and shaking units (e.g. 2/2)?

Yes

Is it possible to alter the height of the shaking units?

Yes, there are 37 possible positions.

Is it possible to have all the shaking units of the rack system turn off when somebody enters the climate room?

Yes

Is IQ-OQ documentation available for the shakers?

Yes

The following flyers provide information about the machines and function-specific solutions.

Kuhner shakers are suitable for the cultivation of microbial, plant, human and animal cell cultures. Find more information about the different application areas and suitable product recommendations for optimal cultivation here.

Stem cells
Cell culture
Bacteria
Plant cells & algae

Contact

Adolf Kühner AG (Headquarters)

Dinkelbergstrasse 1

CH-4127 Birsfelden (Basel)

Switzerland

Services

We support our customers in implementation, maintenance and repair of all Kuhner products – efficiently and competently.

GMP compliant production of shakers and bioreactors

For Kuhner, the quality and durability of their shakers and bioreactors have always been the topics with the highest priority. On this account, Kuhner products have also proven their worth worldwide under GMP requirements. Documentation, development and production along the full life cycle of our products are continuously enhanced to match the requirements of 21 CFR and GAMP 5.

Read more


The world's most reliable shaking machines built in-house in Switzerland.

«Kuhner respects your privacy»

We use cookies to provide you with an innovative experience on our website and to improve our communication with you. Cookies on this website are used to ① improve the user experience (strictly necessary Cookies) ② personalize information about your country and ③ learn how our website is used.

close x

Necessary for the usability of the website (always active)

Necessary cookies help to make a website usable by enabling basic functions such as page navigation and access to secure areas of the website. The website cannot function properly without these cookies.

Save country and language settings for convenience

Country and language cookies allow our website to remember information such as: Your preferred language or country of residence. You will always receive the right information and valid offers tailored to your country.

Statistics for performance measurement

Statistics cookies help us as a website operator to understand how visitors interact with websites by collecting and reporting information anonymously. From the statistics, we gain insights in order to constantly adapt the further development of our communication to the needs of the visitors.

Further information on the handling of cookies and information on data protection can be found here. You can adjust your cookie preferences in the settings.
